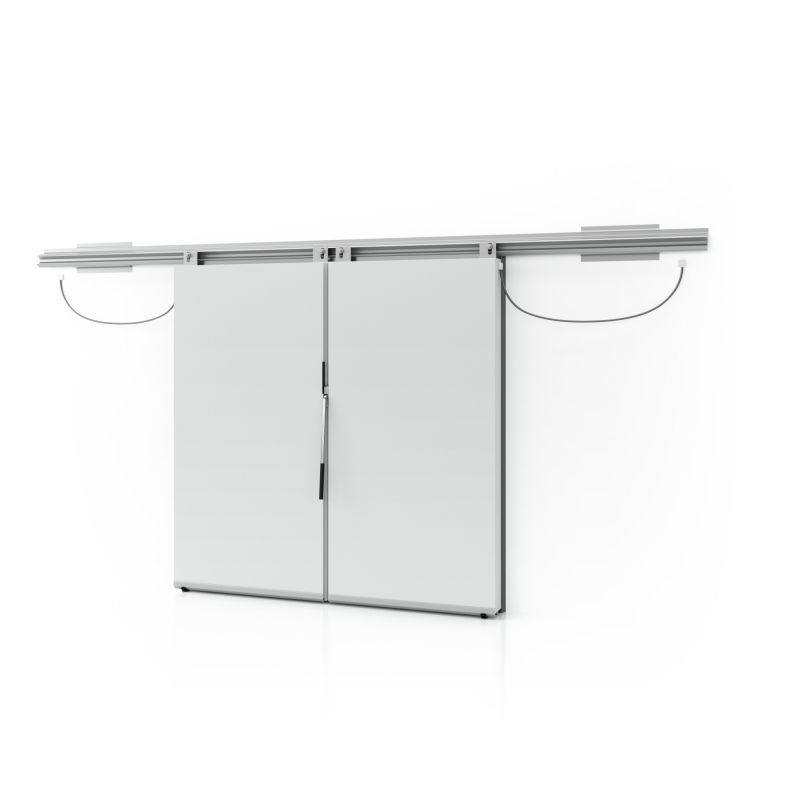

2-leaf sliding door for freeze 150 mm MS1502F
Manual 150 mm 2-Leaf Freezer Door
Here you get a robust manual sliding door with unbeatable strength and very long life.
The freezer door is available with or without a bottom rail and is equipped with heating in both the frame and the door leaf, which prevents the door from freezing. Sliding doors without bottom rail are manufactured with additional heating cables in the door leaf.
The door is insulated with 150 mm high insulating foam, making it an ideal choice for cold rooms where high demands are placed on food quality, shelf life and hygiene.
The door is extremely robust and easy to operate, ensuring smooth workflow and safe logistics in your cold room.
The MS1502F requires no maintenance and meets the most stringent requirements in the food industry.
All our sliding doors are available in several finishes and can be painted in different RAL colours according to the customer's wishes.
See also our other sliding doors.
If you would like a price for a solution that exceeds the maximum dimensions, please feel free to contact us!
Specifications
Max. width | 3200 mm |
---|---|
Max. height | 3600 mm |
Frame | 1,5 mm stainless steel |
Insulation | PIR |
Guide rail | Anodised aluminium, Stainless steel |
Door leaf | 150 mm |
Purpose | Freeze |
Benefits
-
- Complies with the strictest requirements in the food industry
- Food approved sealings on both frame and door leaf
- 150 mm high-insulating and fire-retardant foam ensures less energy loss
- Can be offered as fire-retardant cold room door with fire batts in the door leaf
- Robust construction with very long service life
- Requires no (or minimal) maintenance
Data sheet
Drawing
Operation and maintenance instructions
Frames
Counterframes
