2-leaf fire door MH0622B60

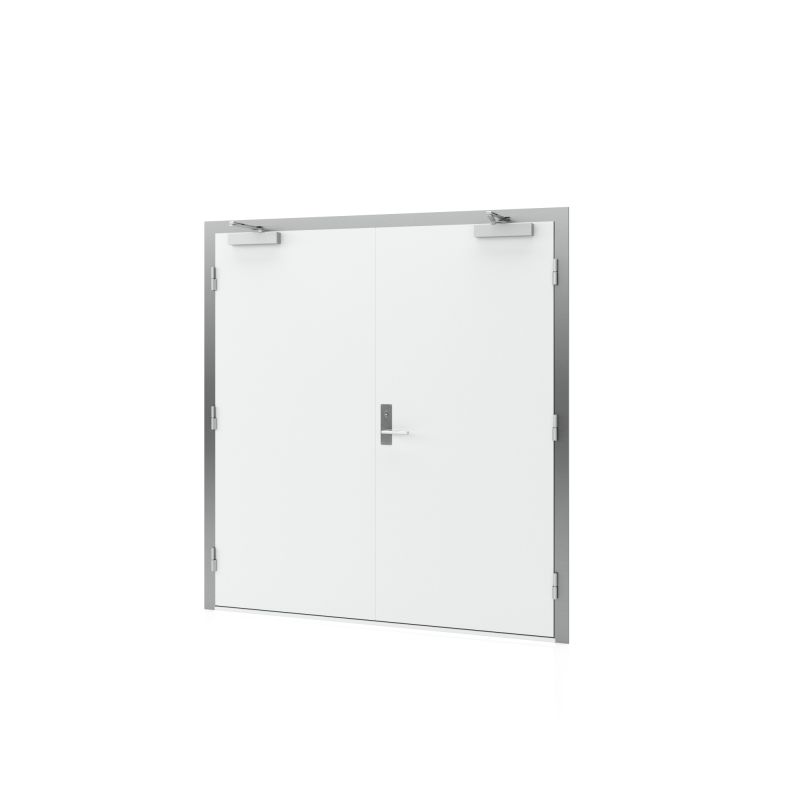

62 mm 2-Leaf Fire Door (Standard)

Data sheet Drawing Operation and maintenance instructions Certificate Frames Treshold Assembly

High quality fire door EI60.

The EI60 fire door is tested according to EN 1634-1 and certified according to EN 16034-1.

Here you get a safe, high-quality fire door with a minimum of 60 minutes fire protection for both interior and exterior use.

The door can be painted in an optional RAL colour to match your brand and design requirements, and is available with a variety of finishes to make it suitable for use in different environments, including food.

It is insulated with rockwool and gypsum and equipped with a powerful door pump as well as EPDM smoke sealings in the frame and manual espagnolette on the upright door leaf.
The fire doors can be supplied safety certified RC3 according to EN-1627.

See also our other fire doors.

Contact us



Specifications

Max. width

2480 mm

Max. height

2930 mm

Frame

1,5 mm stainless steel, Galvanized

Insulation

Rockwool with plaster

Hinges

Stainless steel

Door leaf

62 mm

Certification

EN-16034-1

Purpose

Fire

Benefits

    • Offered as burglar resistant door (RC3) according to EN-1627.
    • Fire sealing strips mounted on door leaf.
    • EPDM smoke seal mounted on frame.
    • Robust construction with very long service life.
    • Requires no (or minimal) maintenance.
    • Certified according to EN-16034-1
