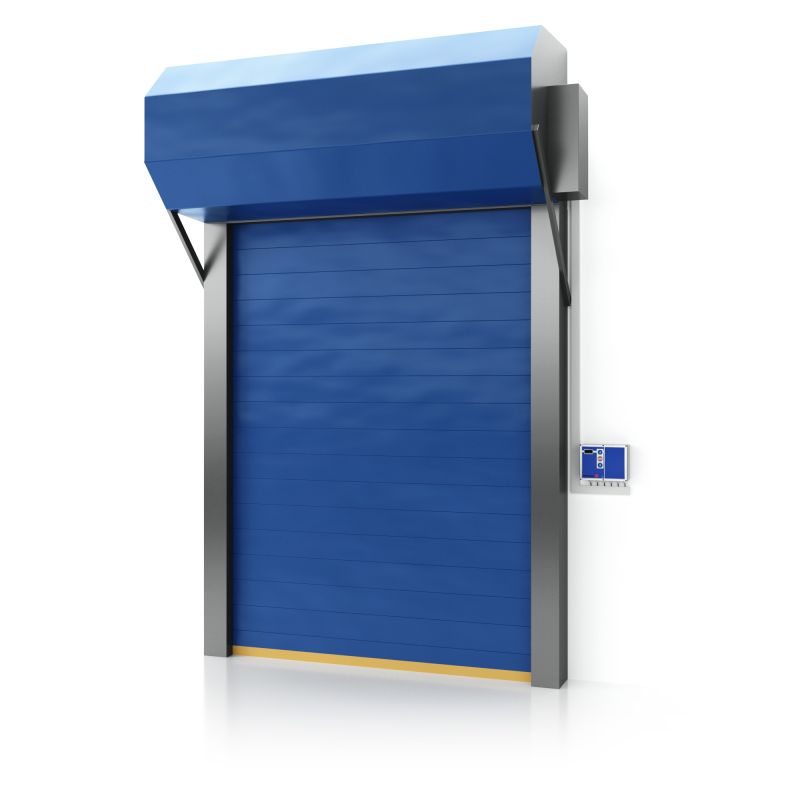

Stainless steel High Speed door AR0081F

Stainless steel High Speed door with 80 mm insulated cover

Data sheet Operation and maintenance instructions Drawing Frames

This High Speed door is a fast, reliable and energy-efficient automatic High Speed door for freezer rooms where there is a lot of truck traffic.

The 80 mm thick fabric combined with the door's lightning-fast opening and closing speed creates optimal conditions to reduce cold and heat loss to a minimum.

The door is particularly suitable for high traffic areas, as it efficiently ensures fast passage between rooms, zones and departments, and is an obvious choice for price-conscious customers who want a door that will last for many years with a minimum of maintenance costs.

See also our other High Speed doors.

If you would like a price for a solution that exceeds the maximum dimensions, please feel free to contact us!

Contact us



Specifications

Max. width

4000 mm

Max. height

4000 mm

Frame

1 mm stainless steel

Automatic

3 x 400 V, 50-60Hz

Opening and closing speed

1,5m/sec - 0,5m/sec

Door leaf

80 mm insulated canvas

Purpose

Freeze

Benefits

    • Light grids in the frame legs up to 2500 mm
    • Insulated door leaf ensures low energy consumption with a low U-value of 0.5 W/m 2 x k
    • The legs are supplied with adjustable heaters
    • Reliable construction with minimal maintenance costs
    • Fast opening and closing speed ensures optimal logistics in the workplace
